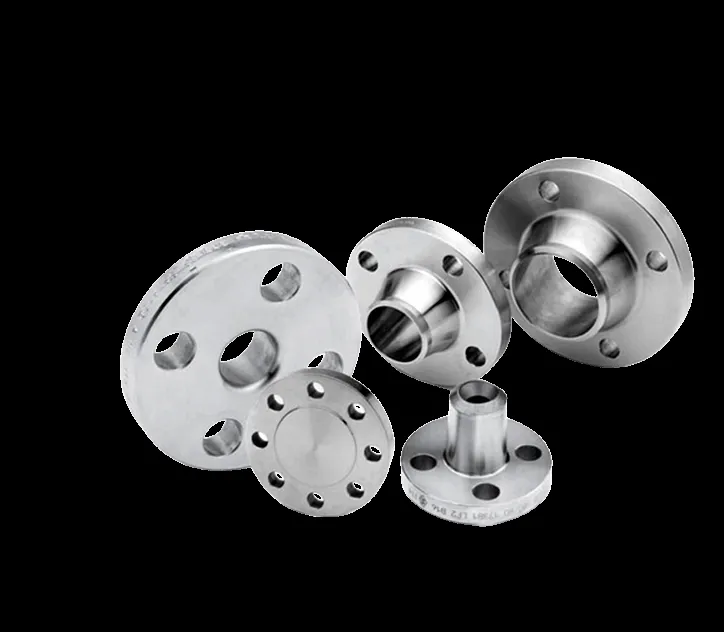

SS 316L Flanges exporter
SS 316L Flanges exporter offers premium-grade stainless steel flanges designed to meet rigorous industrial standards. Crafted from 316L stainless steel, these flanges provide exceptional corrosion resistance, especially in chloride-rich environments, making them ideal for chemical processing, marine, and pharmaceutical industries. The low carbon content in 316L steel enhances weldability and reduces the risk of carbide precipitation, ensuring durability and long-term performance in demanding applications.
These stainless steel flanges come in various types including slip-on, weld neck, blind, and threaded, catering to diverse piping system requirements. Manufactured according to international standards such as ASTM A182 and ASME B16.5, the products guarantee precise dimensions, mechanical strength, and reliable sealing capabilities. The flanges are available in multiple pressure ratings, enabling seamless integration with high-pressure and high-temperature pipelines.
With a focus on export readiness, the supplier adheres to stringent quality control measures, including material testing, dimensional inspections, and third-party certifications. Packaging is designed to withstand long-distance shipping and handling, ensuring the flanges arrive in optimal condition. The exporter’s logistics expertise supports timely delivery to global markets, facilitating smooth supply chain operations for industrial buyers worldwide.
Applications of these stainless steel flanges span across oil and gas refineries, water treatment plants, power generation facilities, and food processing units. Their resistance to pitting and crevice corrosion makes them suitable for harsh environments, while their hygienic properties align with sanitary standards required in pharmaceutical and biotech sectors. The versatility and reliability of these components contribute significantly to the safety and efficiency of pipeline systems.
Industrial purchasers seeking robust and compliant stainless steel pipe fittings will find these flanges a dependable choice. By partnering with an experienced exporter, buyers gain access to tailored solutions, competitive pricing, and comprehensive after-sales support. This ensures that project specifications are met with precision and that operational uptime is maximized through the use of high-quality 316L stainless steel flanges.
Lead Time
2–7 weeks depending on size
Delivery Terms
FOB, CIF, DDP
Shipping Modes
Sea / Air / Express
Why SS 316L Flanges exporter Are Preferred by Global Buyers
- ✔ Factory Pricing: Direct manufacturer rates with bulk stock
- ✔ Certified Quality: ISO & 3rd-party tested, EN 10204 certified
- ✔ Export-Ready: Sea-worthy packaging for on-time delivery
- ✔ Fast RFQs: Quick quotes for custom sizes & quantities
- ✔ Traceability: 100% heat number tracking from raw material to finished product
Trusted by industries like oil & gas, petrochemicals, power, marine, and heavy engineering.
- Manufacturing Capacity: 500 MT / Month
- Export Experience: 15+ Years
- Countries Served: 50+
- Annual Export Volume: 5,500 MT
Table of Contents
- 1. What is SS 316L Flanges exporter
- 2. How to Choose the Right Manufacturer
- 3.Comparison of SS 316L Flanges exporter
- 4. Why Global Buyers Source from Jainam Ferro Alloys
- 5. Features
- 6. Technical Overview
- 7. Specifications
- 8. Available Grades
- 9. Available Sizes
- 10. Chemical Properties
- 11. Mechanical Properties
- 12. Physical & Thermal Properties
- 13. Electrical Resistivity
- 14. Equivalent Grades
- 15. Manufacturing Process & Heat Treatment
- 16. Various Types
- 17. Applications & Uses
- 18. Industries We Serve
- 19. Latest Price List
- 20. MOQ & Payment Terms
- 21. Export Packaging & Shipping
- 22. Cities We Supply in India
- 23. Countries We Export Worldwide
- 24. Our Certifications
- 25. Quality Inspection & Testing
- 26. Our Other Product Types
- 27. People Also Search For
- 28. Frequently Asked Questions
- 29. About Jainam Ferro Alloys
How to Choose the Right SS 316L Flanges exporter
India is home to hundreds of manufacturers ranging from small job shops to large ISO-certified exporters. International and domestic buyers typically evaluate manufacturers based on quality compliance, production capacity, export experience, and pricing transparency.
- Certification & international standards (ASME, ASTM, EN)
- Manufacturing capability vs trading activity
- Export documentation & inspection support
- Stock availability & lead time reliability
- Past supply experience in oil & gas, EPC & heavy industries
Comparison Factors Among SS 316L Flanges exporter
| Evaluation Factor | Small Local Suppliers | Trading Companies | ISO-Certified Manufacturers |
|---|---|---|---|
| Manufacturing Control | Limited | None | Full in-house / audited partners |
| International Standards | Basic | Depends on source | ASME / ASTM / EN |
| Inspection & MTCs | Limited | Inconsistent | EN 10204 3.1 / 3.2 |
| Export Experience | Low | Medium | 50+ countries |
| Risk for EPC Projects | High | Medium | Low |
International buyers typically prefer ISO-certified manufacturers for large-scale or critical applications due to better quality control, documentation, and lower project risk.
Why Global Buyers Choose Jainam Ferro Alloys
Jainam Ferro Alloys is a trusted ISO 9001:2015 certified manufacturer and global exporter of ferro alloys and metal products, supplying consistent, high-quality materials to customers across USA, UK, Europe, Middle East, Africa, and Asia-Pacific. Our focus on quality assurance, cost efficiency, and on-time delivery makes us a preferred sourcing partner for international buyers.
| Key Advantage | Buyer Benefit |
|---|---|
| ISO 9001:2015 Certified Manufacturing | Consistent quality with documented QA systems and process control |
| ASME / ASTM / EN Compliant Products | Globally accepted standards with EN 10204 3.1 / 3.2 MTCs |
| Lower Manufacturing & Sourcing Costs | Save up to 15–20% compared to European suppliers |
| Favorable Exchange Rate Advantage | Reduced landed cost for international importers |
| In-House Testing & Inspection Facilities | Strict chemical, mechanical & dimensional quality checks |
| Bulk Stock & High Production Capacity | Fast order fulfillment and stable supply for large projects |
| Custom Sizes & Drawing-Based Manufacturing | Products manufactured exactly to buyer specifications |
| Export-Grade Packaging & Global Logistics | Sea-worthy packing, palletization & worldwide shipping support |
| Faster Global Shipping Routes | Optimized logistics for Middle East, Africa & Southeast Asia |
| Technical & After-Sales Support | Project assistance, documentation & responsive RFQ handling |
| Trusted by Global Steel & EPC Companies | Proven export experience across 50+ countries |
Features of SS 316L Flanges
- ✔ High corrosion resistance in harsh environments
- ✔ Excellent weldability and formability
- ✔ Durable and long-lasting under high temperatures
- ✔ Smooth surface finish for optimal fluid flow
- ✔ Available in various sizes and pressure ratings
- ✔ Compliance with international standards (ASTM, ASME)
Technical Overview of SS 316L Flanges
| Product | Composition | Usage | Standards |
|---|---|---|---|
| SS 316L Flanges | 16% Cr, 10% Ni, 2% Mo, 0.03% C | Used in chemical processing, marine applications, and food processing industries. | ASTM A182, ASME SA182, ASTM A240 |
| SS 316L Flanges | Low carbon content for enhanced corrosion resistance | Ideal for applications requiring excellent weldability and resistance to pitting. | ISO 5832-1, EN 10088-1 |
| SS 316L Flanges | Contains molybdenum for increased resistance to chloride environments | Commonly used in oil and gas, pharmaceutical, and pulp and paper industries. | API 605, MSS SP-44 |
Specifications Table
| Material | Stainless Steel 316L |
|---|---|
| Grades | ASTM A182, ASTM A240 |
| Standard | ANSI/ASME B16.5, B16.47 |
| Size Range | 1/2" to 48" |
| Length | Custom lengths available |
| Form | Weld Neck, Slip-On, Blind, Socket Weld, Threaded |
Available Grades Table
| Product | Composition | Applications |
|---|---|---|
| SS 316L Flanges | Fe, Cr 16-18%, Ni 10-14%, Mo 2-3% | Marine applications, Chemical processing, Oil and gas industries |
| SS 316L Weld Neck Flanges | Fe, Cr 16-18%, Ni 10-14%, Mo 2-3% | High-pressure systems, Piping systems |
| SS 316L Blind Flanges | Fe, Cr 16-18%, Ni 10-14%, Mo 2-3% | End-of-line piping applications, Pressure vessels |
| SS 316L Slip-on Flanges | Fe, Cr 16-18%, Ni 10-14%, Mo 2-3% | General piping applications, Low-pressure systems |
| SS 316L Socket Weld Flanges | Fe, Cr 16-18%, Ni 10-14%, Mo 2-3% | Compact piping systems, High-temperature applications |
Available Sizes of SS 316L Flanges (MM)
| Size (MM) | Size (MM) |
|---|---|
| 15 | 20 |
| 25 | 32 |
| 40 | 50 |
| 65 | 80 |
| 100 | 125 |
| 150 | 200 |
| 250 | 300 |
| 350 | 400 |
| 450 | 500 |
| 600 | 800 |
Chemical Properties of SS 316L
| Element | Composition (%) |
|---|---|
| Iron (Fe) | 62.0 - 70.0 |
| Chromium (Cr) | 16.0 - 18.0 |
| Nickel (Ni) | 10.0 - 14.0 |
| Molybdenum (Mo) | 2.0 - 3.0 |
| Manganese (Mn) | 2.0 max |
| Silicon (Si) | 1.0 max |
| Carbon (C) | 0.03 max |
| Sulfur (S) | 0.03 max |
Mechanical Properties of SS 316L
| Property | Value |
|---|---|
| Tensile Strength | 480 MPa (69,000 psi) |
| Yield Strength | 170 MPa (25,000 psi) |
| Elongation | 40% (in 50 mm) |
| Hardness | ≤ 90 HRB |
| Modulus of Elasticity | 193 GPa (28,000,000 psi) |
SS 316L Flanges – Physical & Thermal Properties
Density of SS 316L Flanges
| Property | Metric | Imperial |
|---|---|---|
| Density | 8.0 g/cm³ | 0.289 lb/in³ |
Melting Point of SS 316L Flanges
| Property | Metric | Imperial |
|---|---|---|
| Melting Point | 1375 - 1400 °C | 2500 - 2552 °F |
Specific Heat of SS 316L Flanges
| Specific Heat of SS 316L Flanges | ||
|---|---|---|
| Specific Heat (J/kg·K) | Temperature Range (°C) | Condition |
| 500 | 25 - 100 | Solid |
| 900 | 100 - 500 | Solid |
| 1200 | 500 - 1000 | Solid |
Electrical Resistivity of SS 316L
| Electrical Resistivity | ||
|---|---|---|
| Value (µΩ·m) | Temperature (°C) | Treatment or Condition |
| 0.74 | 20 | Annealed |
| 0.75 | 100 | |
| 0.76 | 200 | |
| 0.78 | 300 | |
| 0.80 | 400 | |
Manufacturing Process & Heat Treatment of SS 316L Flanges
Annealing
Annealing of SS 316L flanges is performed to relieve internal stresses and improve ductility. The process typically involves heating the flanges to a temperature range of 1000°C to 1100°C, followed by controlled cooling. This results in a refined microstructure, enhancing the material's overall performance in corrosive environments.
Forging
Forging of SS 316L flanges is conducted using hot working techniques. The material is heated to a temperature between 900°C and 1200°C, allowing for optimal malleability. This process ensures that the flanges have superior mechanical properties and structural integrity, making them suitable for high-pressure applications.
Hardening & Tempering
| Process | Temperature Range (°C) | Quenching Medium | Purpose |
|---|---|---|---|
| Hardening | 1000 - 1100 | Oil | Increase hardness and strength |
| Tempering | 600 - 800 | Air | Reduce brittleness and improve toughness |
| Stress Relieving | 300 - 500 | Air | Eliminate residual stresses from manufacturing |
The combination of these processes ensures that SS 316L flanges meet the required specifications for durability and resistance to corrosion, making them ideal for various industrial applications.
Various Types
SS 316L Slip-On Flanges
- Dimensions: 1/2" to 48"
- Condition: ASTM A182 / A240
- Applications: Piping systems in chemical industries, marine applications
SS 316L Weld Neck Flanges
- Dimensions: 1" to 30"
- Condition: ANSI B16.5
- Applications: High-pressure applications, oil and gas pipelines
SS 316L Blind Flanges
- Dimensions: 1/2" to 24"
- Condition: ASME/ANSI B16.5
- Applications: Closing the ends of piping systems, pressure vessels
SS 316L Socket Weld Flanges
- Dimensions: 1/2" to 4"
- Condition: ASTM A182 F316L
- Applications: High-pressure systems, hydraulic and pneumatic applications
Applications & Uses
- Oil & Gas Industry
- Petrochemical Plants
- Water Treatment Plants
- Pharmaceutical Industry
- Food & Beverage Industry
- Automobile Industry
Industries We Serve
Our alloys are widely used across:
- Steel Plants
- Foundries & Casting Units
- Automobile Industry
- Shipbuilding & Marine
- Oil & Gas
- Engineering Components
- Heavy Industrial Machinery
latest Price List of SS 316L Flanges
| Material Grade | Thickness | Price (USD / Kg) | Price (INR / Kg) |
|---|---|---|---|
| SS 316L Flanges | 3 mm | $5.00 – $5.50 | ₹410 – ₹450 |
| SS 316L Flanges | 6 mm | $5.20 – $5.70 | ₹425 – ₹465 |
| SS 316L Flanges | 10 mm | $5.40 – $5.90 | ₹440 – ₹480 |
Note: Prices are indicative and may vary based on size, quantity, raw material cost, and delivery location. Contact us for the latest quotation for SS 316L Flanges.
MOQ & Payment Terms
Minimum Order Quantity: 25–100 Kg depending on part size and grade.
Payment Terms: Depending On Grade and Quantity Size
Export Packaging & Shipping
- Seaworthy, fumigated wooden crates with waterproof inner lining
- Palletised packing with clear shipping marks and heat number identification
- Container stuffing supervision with loading photographs available on request
Cities We Suppllied In India
| Supply Cities | |||||
|---|---|---|---|---|---|
| Mumbai | Delhi | Pune | Chennai | Hyderabad | Bengaluru |
| Ahmedabad | Rajkot | Coimbatore | Kolkata | Bhopal | Surat |
We exported to 50+ countries worldwide.
| Exported Countries | |||||
|---|---|---|---|---|---|
| USA | UK | UAE | Germany | South Africa | Australia |
| Italy | Canada | Netherlands | Qatar | Saudi Arabia | Malaysia |
Our Certifications
We are a certified manufacturer and exporter, committed to strict quality control and international compliance standards. Below are our key certifications.
Compliance
ISO 14001:2015
Importer Exporter
ISO 45001:2018
ISO 9001:2015
Udyam Registration
Quality Inspection & Testing
At Jainam Ferro Alloys, all products are checked through strict quality inspection and testing to meet international standards such as ASTM, ASME, EN, and DIN. This ensures consistent quality, accurate dimensions, and full material traceability.
- ✔ Chemical composition testing
- ✔ Mechanical tests such as tensile and hardness
- ✔ Dimensional inspection as per standard tolerances
- ✔ PMI, ultrasonic, and visual inspection (if required)
- ✔ EN 10204 3.1 / 3.2 test certificates
- ✔ Third-party inspection by SGS, TUV, BV, or Lloyd’s
Our quality systems support reliable supply for oil & gas, petrochemical, power, marine, and heavy engineering projects.
People Also Search For
- SS 316L Pipe Supplier
- SS 316L Flanges Manufacturer
- Stainless Steel Flanges Exporter
- SS 316L Fittings Distributor
- SS 304 Flanges Supplier
Frequently Asked Questions
About JAINAM FERRO ALLOYS
- ✔ Decades of experience in stainless steel, carbon steel, and alloy steel manufacturing
- ✔ ISO 9001:2015 certified company ensuring strict quality control standards
- ✔ Specialized in cold drawn pipes and tubes processing
- ✔ State-of-the-art manufacturing facilities with modern machinery
- ✔ Precision-engineered products with consistent quality and reliability
- ✔ Customized steel solutions as per client drawings and specifications
- ✔ Compliance with international industry standards
- ✔ Trusted supplier for critical industrial applications worldwide
